ChineseCensus profiles for Purple Line MOS-5 stations

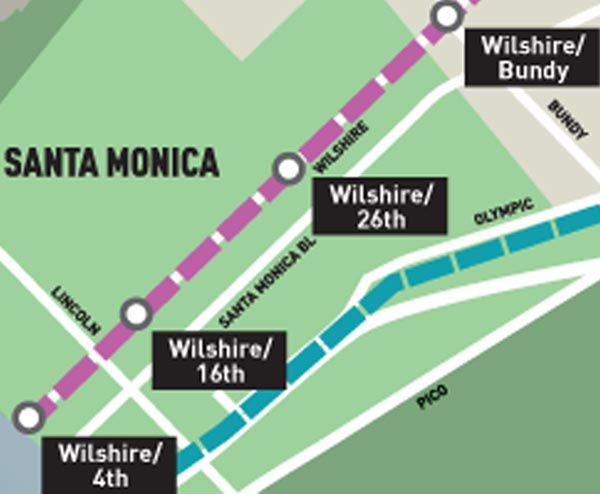

Here you have it. MetroRiderLA has plumbed the depths of Census Bureau data to get a profile of stations for the proposed subway to the sea extensions of the Purple Line, and threw in the Pink Line as a bonus.
This effort all got started as a case to keep the Wilshire/Crenshaw station included, and then expanded to get a better outlook for all stations on the proposed subway extension. If this is your first opportunity reading this, look at the profiles for MOS-1 (to Fairfax Avenue), MOS-2 (to Century City), MOS-3 (to Westwood and Barrington Avenue) and MOS-4 (West Hollywood).
Each station has population density maps from census tracts to blocks, centered on the potential station site. Below that are tables showing indicators revealing factors closely tied to transit usage: transit share of commute trips, walking share of commute trips, renter-occupied dwellings, individuals below the poverty level and households with no or 1 vehicle.
Wilshire/Bundy Station
Photo by rox sm via Flickr; used with a Creative Commons license
Bundy Drive shares a similar density profile and transit usage to its closest station, Barrington Avenue. It is the western bookend to a dense high-rise office corridor that is also L.A.’s “Embassy Row.” Bundy also includes residences in the eastern edge of the Santa Monica city limits. West of Bundy, the high-rise office buildings disappear, but residences near Wilshire Boulevard are in the densest census tracts in Santa Monica.
| Census tract | 90025 | 90049 | 90403 | 90404 |
| Block group | 90025 | 90049 | 90403 | 90404 |
| Block | 90025 | 90049 | 90403 | 90404 |
| Factors, in percentages | 90025 | 90049 | L.A. City | 90403 | 90404 | Santa Monica | L.A. County |
| Transit as a share of work trips | 7.2 | 1.3 | 10.2 | 2.8 | 8.2 | 4.1 | 6.6 |
| Walking as a share of work trips | 3.8 | 2.8 | 3.6 | 3.6 | 6.6 | 4.4 | 2.9 |
| Renter occupied units | 76.9 | 47.1 | 61.4 | 74.4 | 77.7 | 70.2 | 52.1 |
| Individuals below poverty level | 15.1 | 5.3 | 22.1 | 9.4 | 14.6 | 10.4 | 17.9 |
| Households with access to 0 or 1 vehicles | 60.4 | 45.6 | 56.8 | 66.5 | 63.8 | 63.1 | 49.6 |
Number of buses per hour for midday service in each direction (fractions rounded up to the next integer):
| Weekdays | Saturdays | Sundays | |
| 704 | 2 | 4 | 4 |
| 720 west of Westwood Bl. | up to 15 | up to 12 | up to 10 |
| Big Blue Bus 1 | 6 | 4 | 3 |
| Big Blue Bus 2 | 3 | 3 | 3 |
| Big Blue Bus 3 | 2 | 2 | 2 |
| Big Blue Bus 14 | 2 | 2 | 2 |
Wilshire/26th Street Station

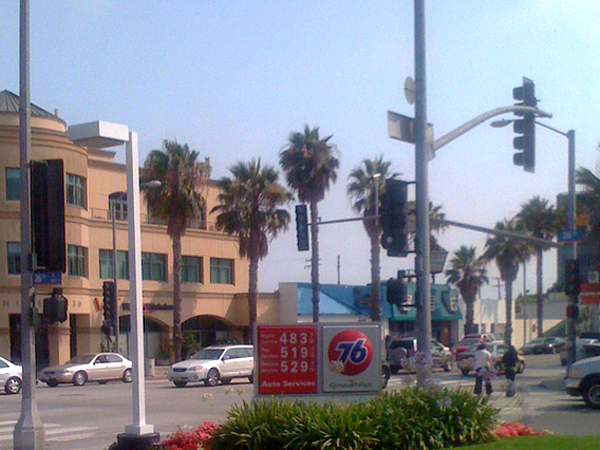

Photo originally by cfarivar via Flickr; remixed with a Creative Commons license
A station at 26th Street would be the easternmost station within Santa Monica’s city limits. The station could be placed at the gas station in the above photo that charged more than $5 a gallon of gas last summer. What would be around it? A strip of mostly single- or two-story retail boutiques and restaurants. This station would be oriented more toward the residences around Wilshire — and there are many, as the Census maps show. Though the density falls off sharply north of Montana Avenue.
| Census tract | 90402 | 90403 | 90404 |
| Block group | 90402 | 90403 | 90404 |
| Block | 90402 | 90403 | 90404 |
| Factors, in percentages | 90402 | 90403 | 90404 | Santa Monica | L.A. County |
| Transit as a share of work trips | 1.9 | 2.8 | 8.2 | 4.1 | 6.6 |
| Walking as a share of work trips | 2.0 | 3.6 | 6.6 | 4.4 | 2.9 |
| Renter occupied units | 31.9 | 74.4 | 77.7 | 70.2 | 52.1 |
| Individuals below poverty level | 3.6 | 9.4 | 14.6 | 10.4 | 17.9 |
| Households with access to 0 or 1 vehicles | 39.8 | 66.5 | 63.8 | 63.1 | 49.6 |
Number of buses per hour for midday service in each direction (fractions rounded up to the next integer):
| Weekdays | Saturdays | Sundays | |
| 704 | 2 | 4 | 4 |
| 720 west of Westwood Bl. | up to 15 | up to 12 | up to 10 |
| Big Blue Bus 1 | 6 | 4 | 3 |
| Big Blue Bus 2 | 3 | 3 | 3 |
| Big Blue Bus 3 | 2 | 2 | 2 |
| Mini Blue Bus Crosstown | 4 | 0 | 0 |
Wilshire/16th Street Station and Wilshire/4th (the sea) station
Photo by Yours Truly. This and other photos can be seen on the MetroRiderLA Flickr pool.
Yes, the two stations are nearly a mile apart, but they share enough census data with the 26th Street station that much of the data are redundant. For the purposes of this dual entry, the maps are centered around the intersection of Wilshire and Fourth Street. Sixteenth Street is not at all unlike 26th Street, except that it is near the UCLA Medical Center.
Fourth Street is the closest Mayor Antonio Villaraigosa can hope to get the subway to the sea. There are probably some purists out there who insists that the subway to the sea must be interpreted literally and have a stop at the end of the Santa Monica Pier or something. These are likely the same people who complained the Gold Line is too slow after the Marmion Way passage took away two minutes of their lives that they’ll never get back.
Fourth Street is no slouch. While Santa Monica’s downtown area is not thick with homes, the coastal business district is both a draw for tourists and beachcombers and provides tens of thousands of service-sector jobs. Just a block away is the Third Street Promenade, which was a forefather of the pedestrian renaissance in Southern California. Fourth and Santa Monica Boulevard is also the nexus of Santa Monica’s Big Blue Bus routes. It’s a logical terminus for the subway.
But then, Santa Monica will have two rail lines, both going between the downtowns of Santa Monica and Los Angeles. So, I now pose this question to MetroReaders: Should Metro try to make an effort to have a single Santa Monica terminal for both the Expo and Purple lines? (Yes, it’s a test to see if you’ve read this far.) And a bonus question: What do you think is preferable: Two stations at 16th and 26th streets, or splitting the difference between the two and building a single station at 20th Street?
Anyway, here are the data for 16th and Fourth streets, with maps centered at the latter:
| Census tract | 90401 | 90402 | 90403 | 90404 |
| Block group | 90401 | 90402 | 90403 | 90404 |
| Block | 90401 | 90402 | 90403 | N/A |
| Factors, in percentages | 90401 | 90402 | 90403 | 90404 | Santa Monica | L.A. County |
| Transit as a share of work trips | 4.4 | 1.9 | 2.8 | 8.2 | 4.1 | 6.6 |
| Walking as a share of work trips | 9.1 | 2.0 | 3.6 | 6.6 | 4.4 | 2.9 |
| Renter occupied units | 92.6 | 31.9 | 74.4 | 77.7 | 70.2 | 52.1 |
| Individuals below poverty level | 19.6 | 3.6 | 9.4 | 14.6 | 10.4 | 17.9 |
| Households with access to 0 or 1 vehicles | 78.9 | 39.8 | 66.5 | 63.8 | 63.1 | 49.6 |
Number of buses per hour for midday service in each direction (fractions rounded up to the next integer) near 4th Street:
| Weekdays | Saturdays | Sundays | |
| 333 | 4 | 4 | 4 |
| 704 | 2 | 4 | 4 |
| 720 west of Westwood Bl. | up to 15 | up to 12 | up to 10 |
| Big Blue Bus 1 | 6 | 4 | 3 |
| Big Blue Bus 2 | 3 | 3 | 3 |
| Big Blue Bus 3 | 2-4 | 2-4 | 2-4 |
| Big Blue Bus 4 | 2 | 1 | 1 |
| Big Blue Bus 5 | 2 | 2 | 2 |
| Big Blue Bus 7 / Rapid 7 | up to 12 | 4 | 4 |
| Big Blue Bus 8 | 4 | 2 | 2 |
| Big Blue Bus 9 | 2 | 2 | 2 |
| Big Blue Bus 10 | 2 | 2 | 2 |
